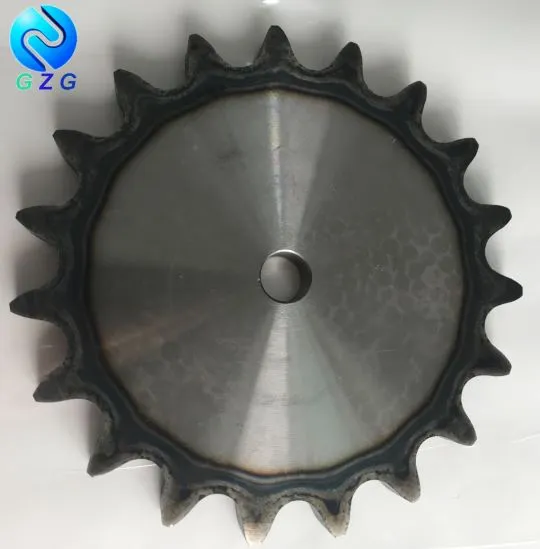

The obvious difference between type A and type B sprocket is that, you can find a hub on type B, but no hub on type A. ANSI sprocket works with A series roller chain, no matter it's A or B type. Please find dimensions of plate wheel sprocket 40-80(08A-16A) here.

1. Roda dentada de placa ANSI 40 (08A-1-2)

z	de	dp	SIMPLEX		DÚPLEX		ANSI 40
z	de	dp	D1	Kg	D2	Kg	08A-1-2
8	39.3	33.18	8	0.04	10	0.07	Sprocket	milímetros
9	43.2	37.13	8	0.04	10	0.1	Raio do dente r3	13.5
10	47.2	41.10	8	0.06	10	0.13	Largura do raio C	1.6
11	51.2	45.07	8	0.07	12	0.17	Largura do dente B1	7.2
12	55.2	49.07	8	0.08	12	0.21	Largura do dente b1	7
13	59.2	53.06	10	0.1	12	0.25	Largura do dente B2	21.1
14	63.2	57.07	10	0.12	12	0.3	Cadeia	milímetros
15	67.2	61.09	10	0.14	12	0.36	Tom	12.7
16	71.2	65.10	10	0.16	16	0.41	Largura interna	7.95
17	75.2	69.11	10	0.18	16	0.47	Roller Φ	7.95
18	79.2	73.14	10	0.20	16	0.54
19	83.3	77.16	10	0.23	16	0.61
20	87.3	81.19	10	0.27	16	0.68
21	91.3	85.22	12	0.28	16	0.75
22	95.4	89.24	12	0.31	16	0.83
23	99.4	93.27	12	0.35	16	0.92
24	103.4	97.29	12	0.38	16	1.01
25	107.4	101.36	12	0.41	16	1.1
26	111.5	105.36	16	0.43	16	1.2
27	115.5	109.4	16	0.46	16	1.31
28	119.5	113.42	16	0.48	16	1.42
29	123.6	117.46	16	0.53	16	1.53
30	127.6	121.50	16	0.58	16	1.65
31	131.6	125.54	16	0.63	20	1.77
32	135.7	129.56	16	0.68	20	1.9
33	139.7	133.6	16	0.73	20	2.02
34	143.8	137.64	16	0.78	20	2.16
35	147.8	141.68	16	0.83	20	2.3
36	151.8	145.72	16	0.88	20	2.42
37	155.9	149.76	16	0.93	20	2.56
38	159.9	153.80	16	0.98	20	2.71
39	163.9	157.83	16	1.03	20	2.87
40	168.0	161.87	16	1.09	20	3.03
41	172.5	165.91	20	1.14	20	3.2
42	176.6	169.95	20	1.19	20	3.36
43	180.6	173.99	20	1.25	20	3.53
44	184.6	178.03	20	1.32	20	3.71
45	188.7	182.07	20	1.38	20	3.89
46	192.7	186.10	20	1.44	20	4.07
47	196.8	190.14	20	1.51	20	4.52
48	200.8	194.18	20	1.58	20	4.66
49	204.8	198.22	20	1.65	20	4.78
50	208.9	202.26	20	1.73	20	4.88
51	212.9	206.3	20	1.8	20	5.03
52	217.0	210.34	20	1.87	20	5.24
53	221	214.37	20	1.94	20	5.46
54	225.0	218.43	20	2.02	20	5.68
55	229.1	222.46	20	2.1	20	5.9
56	233.1	226.50	20	2.17	20	6.13
57	237.2	230.54	20	2.25	20	6.36
58	241.2	234.62	20	2.36	20	6.59
59	245.2	238.62	20	2.42	20	6.83
60	249.3	242.66	20	2.50	20	7.08
62	257.4	250.74	25	2.67	25	7.6
64	265.4	258.82	25	2.85	25	8.1
65	269.5	262.86	25	2.94	25	8.36
66	273.5	266.90	25	3.03	25	8.63
68	281.6	274.99	25	3.22	25	9.2
70	289.7	283.07	25	3.42	25	9.75
72	297.8	291.16	25	3.62	25	10.33
75	309.9	303.27	25	3.94	25	11.24
76	313.9	307.33	25	4.05	25	11.55
78	322.0	315.40	25	4.27	25	12.25
80	330.1	323.48	25	4.50	25	12.9
85	350.3	343.69	25	5.62	25	14.55
90	370.5	363.90	25	6.31	25	16.36
95	390.7	384.11	25	7.05	25	18.28
100	410.9	404.31	25	7.82	25	20.3
110	451.4	444.74	25	9.50	25	24.67
114	467.5	460.90	25	10.21	25	26.57
120	491.8	485.16	25	11.32	25	29.46
125	512.0	505.37	25	12.31	25	32

2. Roda dentada de placa ANSI 50(10A-1-2)

z	de	dp	SIMPLEX		DÚPLEX		ANSI 50
z	de	dp	D1	Kg	D2	Kg	10A-1-2
8	48.4	41.48	10	0.06	10	0.15	Sprocket	milímetros
9	53.3	46.42	10	0.09	10	0.21	Raio do dente r3	17
10	58.3	51.37	10	0.11	12	0.27	Largura do raio C	2
11	63.2	56.34	12	0.14	12	0.34	Largura do dente B1	8.7
12	68.2	61.34	12	0.17	16	0.42	Largura do dente b1	8.4
13	73.2	66.32	12	0.20	16	0.51	Largura do dente B2	26.5
14	78.2	71.34	12	0.23	16	0.60	Cadeia	milímetros
15	83.2	76.36	12	0.27	16	0.70	Tom	15.875
16	88.3	81.37	12	0.31	16	0.82	Largura interna	9.53
17	93.3	86.39	12	0.36	16	0.94	Roller Φ	10.16
18	98.3	91.42	14	0.41	16	1.06
19	103.3	96.45	14	0.46	16	1.20
20	108.4	101.49	14	0.51	16	1.34
21	113.4	106.52	16	0.57	16	1.48
22	118.4	111.55	16	0.62	20	1.64
23	123.5	116.58	16	0.68	20	1.80
24	128.5	121.62	16	0.75	20	1.98
25	133.6	126.66	16	0.82	20	2.17
26	138.6	131.70	20	0.88	20	2.33
27	143.6	136.75	20	0.95	20	2.53
28	148.7	141.78	20	1.03	20	2.74
29	153.7	146.83	20	1.11	20	2.96
30	158.8	151.87	20	1.19	20	3.18
31	163.8	156.92	20	1.28	20	3.41
32	168.9	161.95	20	1.36	20	3.66
33	173.9	167.00	20	1.45	20	3.90
34	178.9	172.05	20	1.55	20	4.16
35	184.0	177.10	20	1.64	20	4.42
36	189.0	182.15	20	1.73	20	4.70
37	194.1	187.20	20	1.83	20	4.98
38	199.1	192.24	20	1.94	20	5.26
39	204.2	197.29	20	2.05	20	5.56
40	209.2	202.34	20	2.16	20	5.87
41	215.8	207.39	20	2.28	20	6.17
42	220.8	212.44	20	2.39	20	6.46
43	225.9	217.49	20	2.50	20	6.80
44	230.9	222.53	20	2.63	20	7.13
45	236.0	227.58	20	2.75	20	7.47
46	241.0	232.63	20	2.88	20	7.83
47	246.1	237.68	20	3.00	20	8.19
48	251.1	242.73	20	3.14	20	8.55
49	256.2	247.78	20	3.28	20	8.91
50	261.2	252.82	20	3.42	20	6.32
51	266.3	257.87	20	3.56	20	9.72
52	271.3	262.92	20	3.70	20	10.11
53	276.4	267.97	20	3.85	20	10.52
54	281.4	273.03	20	4.00	20	10.94
55	286.5	278.08	20	4.15	20	11.36
56	291.5	283.13	25	4.30	20	11.80
57	296.6	288.18	25	4.46	25	12.24
58	301.6	293.23	25	4.62	25	12.68
59	306.7	298.27	25	4.78	25	13.15
60	311.7	303.32	25	4.95	25	13.61
62	321.8	313.43	25	5.30	25	14.56
64	331.9	323.53	25	5.65	25	15.51
65	337.0	328.58	25	5.83	25	16.05
68	352.1	343.74	25	6.40	25	17.59
70	362.2	353.84	25	6.79	25	18.70
72	372.3	363.95	25	7.19	25	19.81
75	387.5	379.09	25	7.81	25	21.54
76	392.5	374.16	25	8.02	25	22.14
78	402.6	394.25	25	8.46	25	23.37
80	412.7	404.35	25	8.91	25	24.60
85	438.0	429.62	30	10.06	25	28.00
90	463.3	254.88	30	11.30	25	31.25
95	488.5	480.14	30	12.61	25	34.90
100	513.8	505.40	30	13.99	25	38.75
110	564.3	555.92	30	16.97	25	46.73
114	584.5	576.13	30	19.98	25	50.60
120	614.8	606.44	30	22.17	25	56.16
125	640.1	631.71	30	24.08	25	61.00

3. Roda dentada de placa ANSI 60(12A-1-2)

z	de	dp	SIMPLEX		DÚPLEX		ANSI 60
z	de	dp	D1	Kg	D2	Kg	12A-1-2
8	58.1	49.78	10				Sprocket	milímetros
9	64.0	55.70	10				Raio do dente r3	20
10	70.0	61.64	10		12		Largura do raio C	2.4
11	76.0	67.61	12		16		Largura do dente B1	11.7
12	81.9	76.60	12		16		Largura do dente b1	11.3
13	87.9	79.59	14	0.35	16		Largura do dente B2	34.1
14	94.0	85.61	14	0.41	16		Cadeia	milímetros
15	100.0	91.63	14	0.48	16		Tom	19.05
16	106.0	97.65	14	0.55	20		Largura interna	12.7
17	112.0	103.67	14	0.63	20		Roller Φ	11.91
18	118.0	109.71	14	0.71	20
19	124.1	115.75	14	0.83	20
20	130.1	121.78	14	0.92	20
21	136.2	127.82	16	0.99	20
22	142.2	133.86	16	1.09	20
23	148.2	139.90	16	1.20	20
24	154.3	145.94	16	1.31	20
25	160.3	152.00	16	1.43	20
26	166.4	158.04	16	1.56	20
27	172.4	164.09	16	1.68	20
28	178.5	170.13	16	1.82	20
29	184.5	176.19	16	1.96	20
30	190.6	182.25	16	2.10	20
31	196.6	188.31	20	2.24	20
32	202.7	194.35	20	2.39	20
33	208.8	200.40	20	2.55	20
34	214.8	206.46	20	2.71	20
35	220.9	212.52	20	2.88	20
36	226.9	218.58	20	3.06	25
37	233.0	224.64	20	3.25	25
38	239.0	230.69	20	3.42	25
39	245.1	236.75	20	3.63	25
40	251.1	242.81	20	3.85	25
41	259.1	248.87	25	4.01	25
42	265.2	254.93	25	4.19	25
43	271.3	260.98	25		25
44	277.3	267.03	25		25
45	283.3	273.10	25		25
46	289.4	279.16	25		25
47	295.5	285.21	25		25
48	301.5	291.27	25		25
49	307.6	297.33	25		25
50	313.6	303.39	25		25
51	319.7	309.45	25		25
52	325.8	315.50	25		25
53	331.8	321.56	25		25
54	337.9	327.64	25		25
55	343.9	333.70	25		25
56	350.0	339.75	25		25
57	356.1	345.81	25		25
58	362.1	351.87	25		25
59	368.2	357.93	25		25
60	374.2	363.99	25		25
62	386.4	376.12	25		30
64	398.5	388.24	25		30
65	404.5	394.29	25		30
66	410.6	400.35	25		30
68	422.7	412.49	25		30
70	434.9	424.60	25		30
72	447.0	436.74	25		30
75	465.2	454.91	25		30
76	471.2	460.99	25		30
78	483.3	473.10	25		30
80	495.5	485.22	25		30
85	525.8	515.55	25		30
90	556.1	545.86	25		30
95	586.4	576.17	25		30
100	616.7	606.47	25		30
110	677.4	667.11	25		30
114	701.6	691.36	25		30
120	738.0	727.74	25		30
125	768.3	758.05	25		30

4. Roda dentada de placa ANSI 80(16A-1-2)

z	de	dp	SIMPLEX		DÚPLEX		ANSI 80
z	de	dp	D1	Kg	D2	Kg	16A-1-2
8	77.9	66.37	16		20		Sprocket	milímetros
9	85.8	74.27	16		20		Raio do dente r3	27
10	93.8	82.19	16		20		Largura do raio C	3.2
11	101.7	90.14	16		20		Largura do dente B1	14.7
12	109.7	98.14	16	0.77	20		Largura do dente b1	14.1
13	117.7	106.12	16	0.91	20		Largura do dente B2	43.4
14	125.7	114.15	16	1.01	20		Cadeia	milímetros
15	133.7	122.17	16	1.22	20		Tom	25.4
16	141.8	130.20	20	1.43	25		Largura interna	15.88
17	149.8	138.22	20	1.64	25		Roller Φ	15.88
18	157.8	146.28	20	1.85	25
19	165.9	154.33	20	2.08	25
20	173.9	162.38	20	2.12	25
21	182.0	170.43	20	2.45	25
22	190.1	178.48	20	2.84	25
23	198.1	186.53	20	3.13	25
24	206.2	194.59	20	3.42	25
25	214.2	202.66	20	3.73	25
26	222.3	210.72	20	4.05	25
27	230.4	218.79	20	4.38	25
28	238.4	226.85	20	4.73	25
29	246.5	234.92	20	5.09	25
30	254.6	243.00	20	5.46	25
31	262.6	251.08	25	5.83	25
32	270.7	259.13	25	6.21	25
33	278.8	267.21	25	6.63	25
34	286.9	275.28	25	7.06	25
35	294.9	283.36	25	7.49	25
36	303.0	291.44	25	8.01	25
37	311.1	299.51	25	8.45	25
38	319.2	307.59	25	8.88	25
39	327.2	315.67	25		25
40	335.3	323.73	25		25
41	345.6	331.82	25		25
42	353.7	339.90	25		25
43	361.7	347.98	25		25
44	369.8	356.06	25		25
45	377.9	364.12	25		25
46	386.0	372.21	25		25
47	394.1	380.29	25		25
48	402.1	388.36	25		25
49	410.2	396.44	25		25
50	418.3	404.52	25		25
51	426.5	412.60	25		30
52	434.5	420.67	25		30
53	442.5	428.75	25		30
54	450.6	436.85	25		30
55	458.7	444.93	25		30
56	466.8	453.01	25		30
57	474.9	461.07	25		30
58	482.9	469.16	25		30
59	491.0	477.24	25		30
60	499.1	485.32	25		30
62	515.3	501.50	30		30
64	531.4	517.65	30		30
65	539.5	525.73	30		30
66	547.6	533.80	30		30
68	563.8	549.98	30		30
70	579.9	566.14	30		30
72	596.1	582.32	30		30
75	620.3	606.35	30		30
76	628.4	614.65	30		30
78	644.6	630.80	30		30
80	660.7	646.96	30		30
85	701.2	687.04	30		30
90	741.6	727.81	30		30
95	782.0	768.22	30		30
100	822.4	808.63	30		30
110	903.3	889.48	30		30
114	935.6	921.81	30		40
120	984.1	970.33	30		40
125	1024.5	1010.73	30		40
